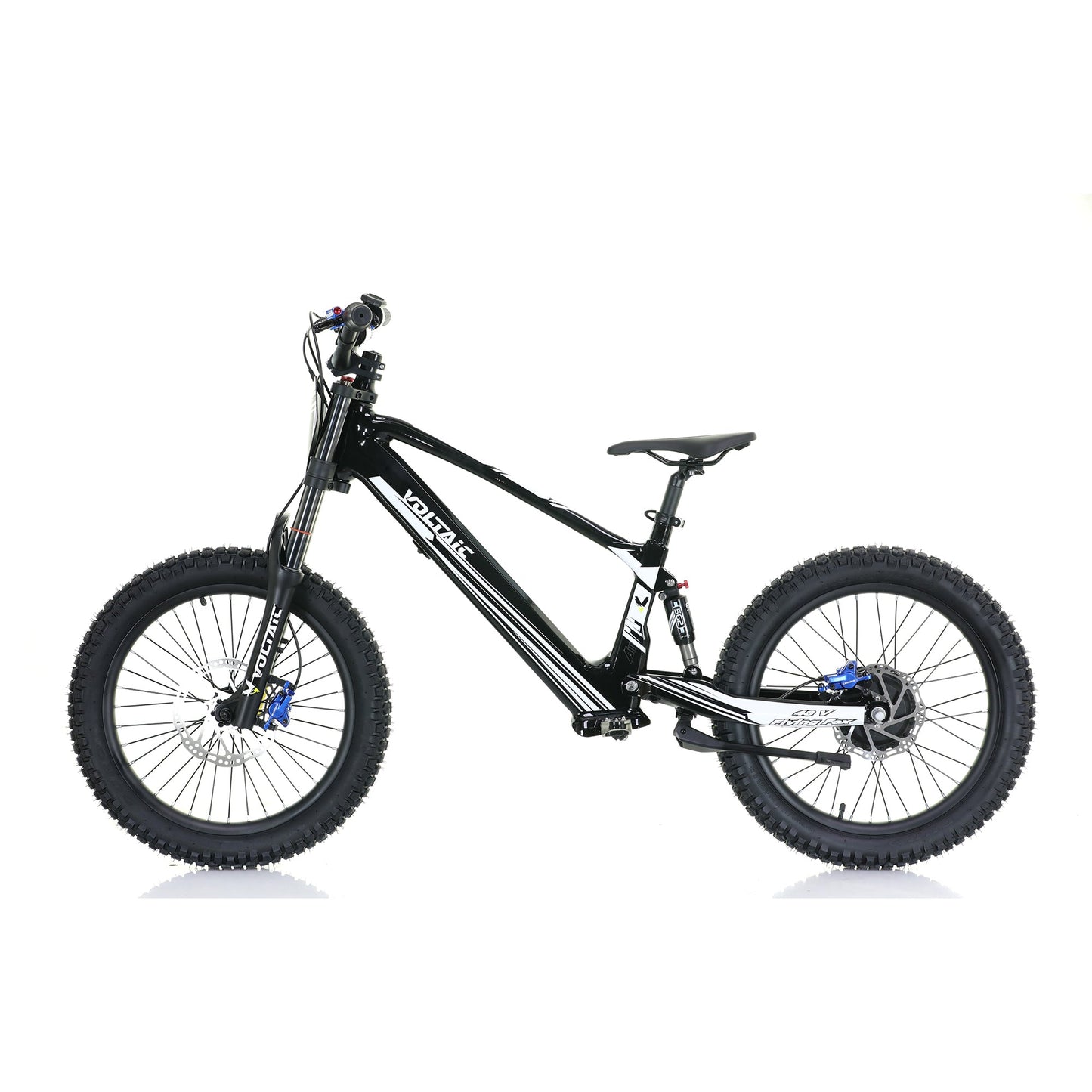

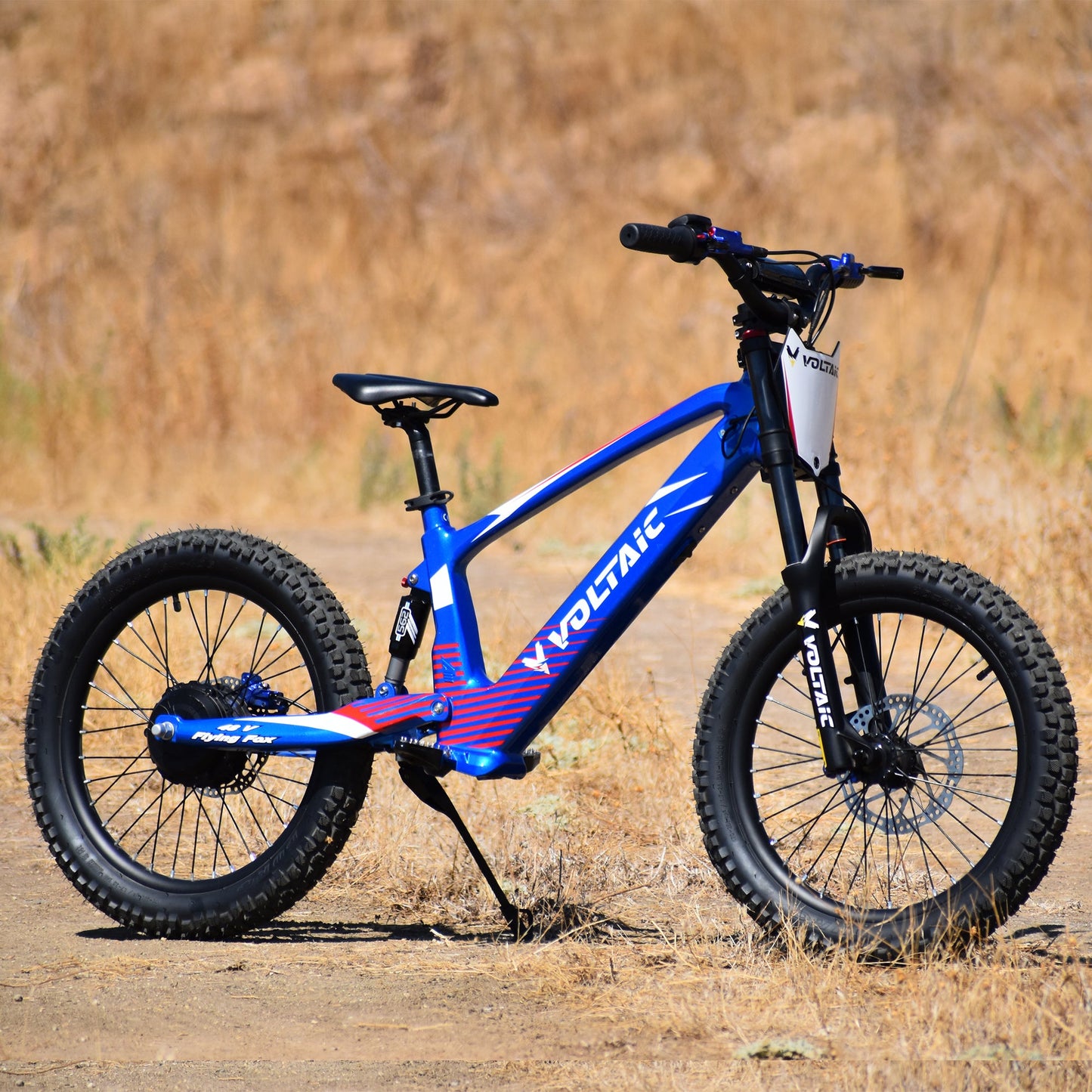

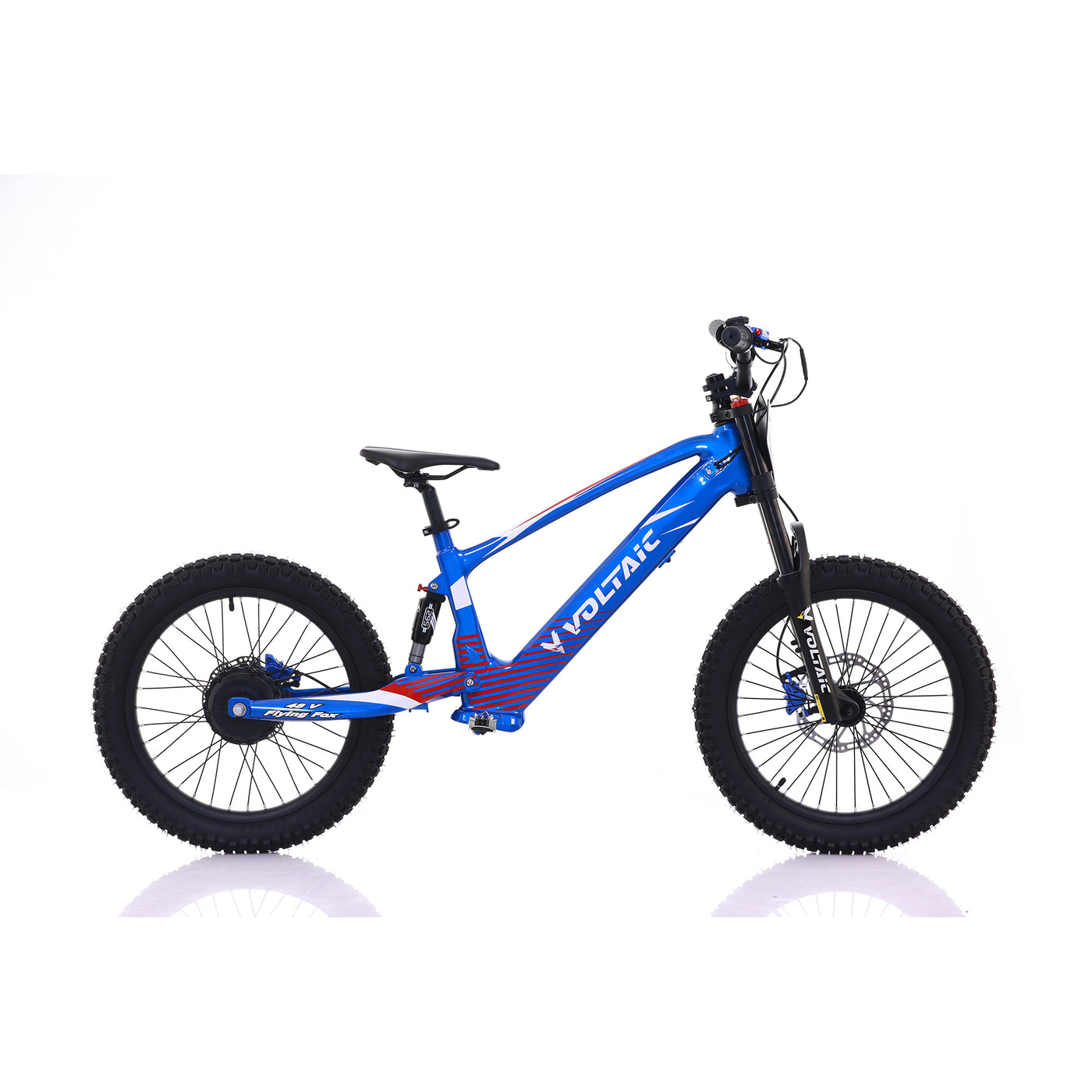

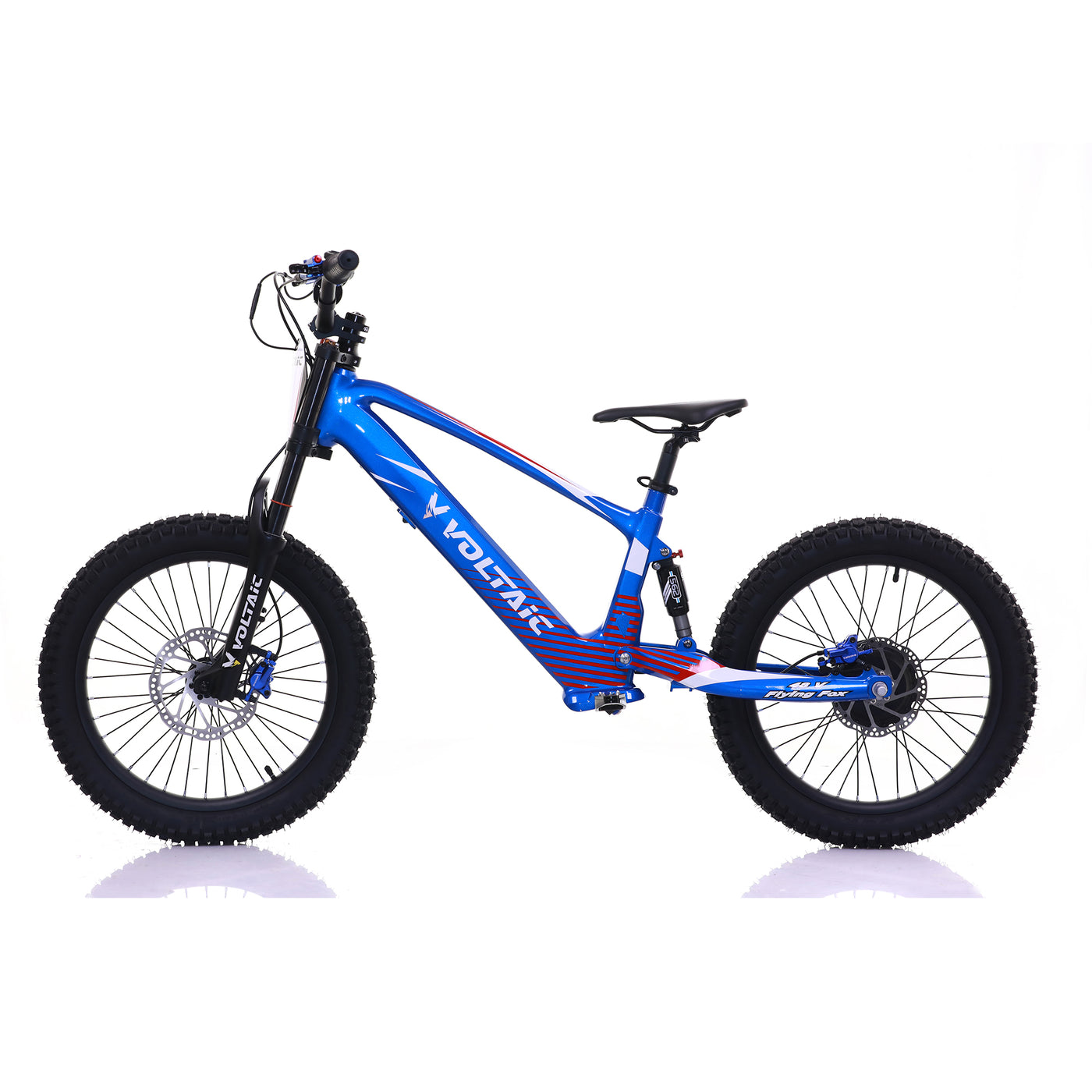

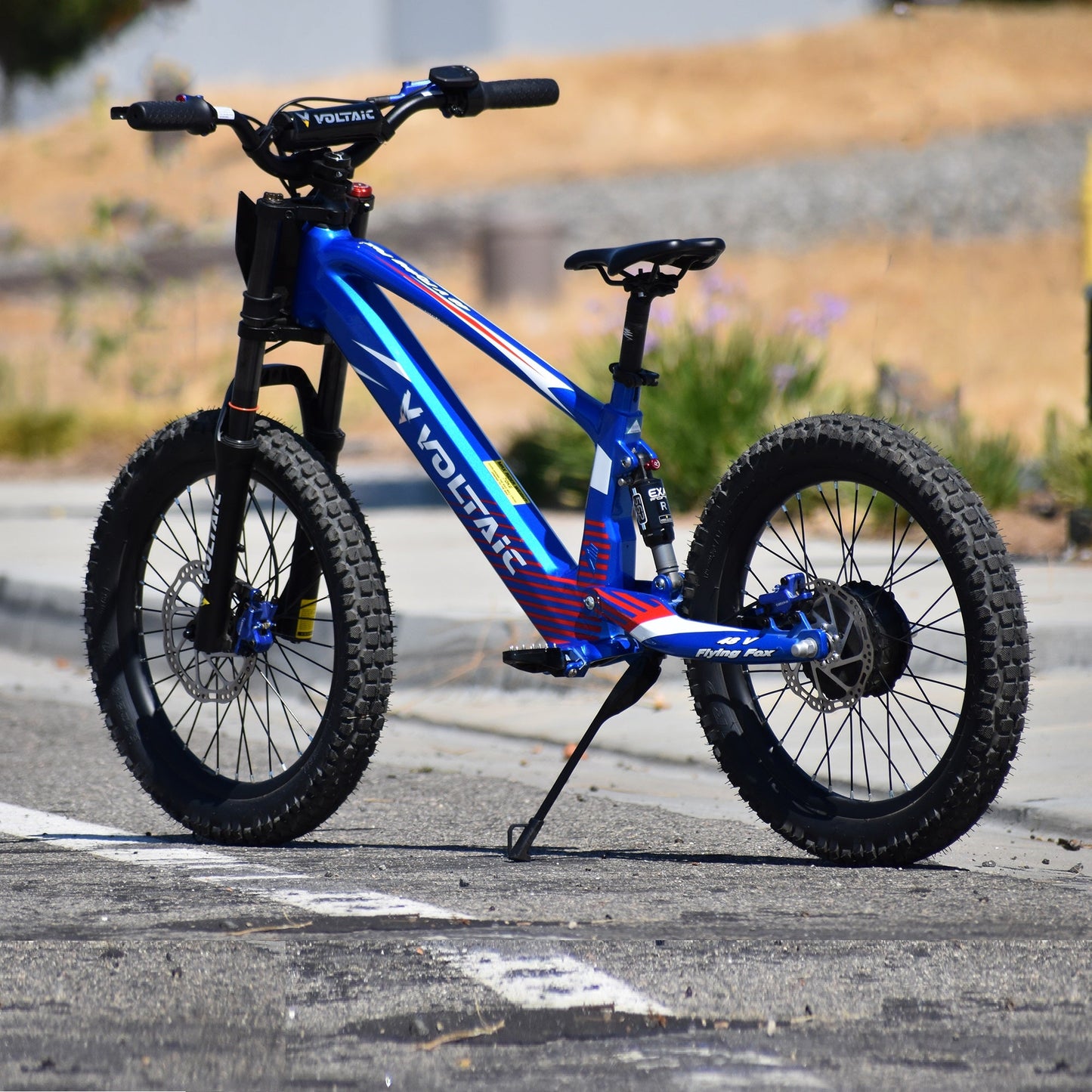

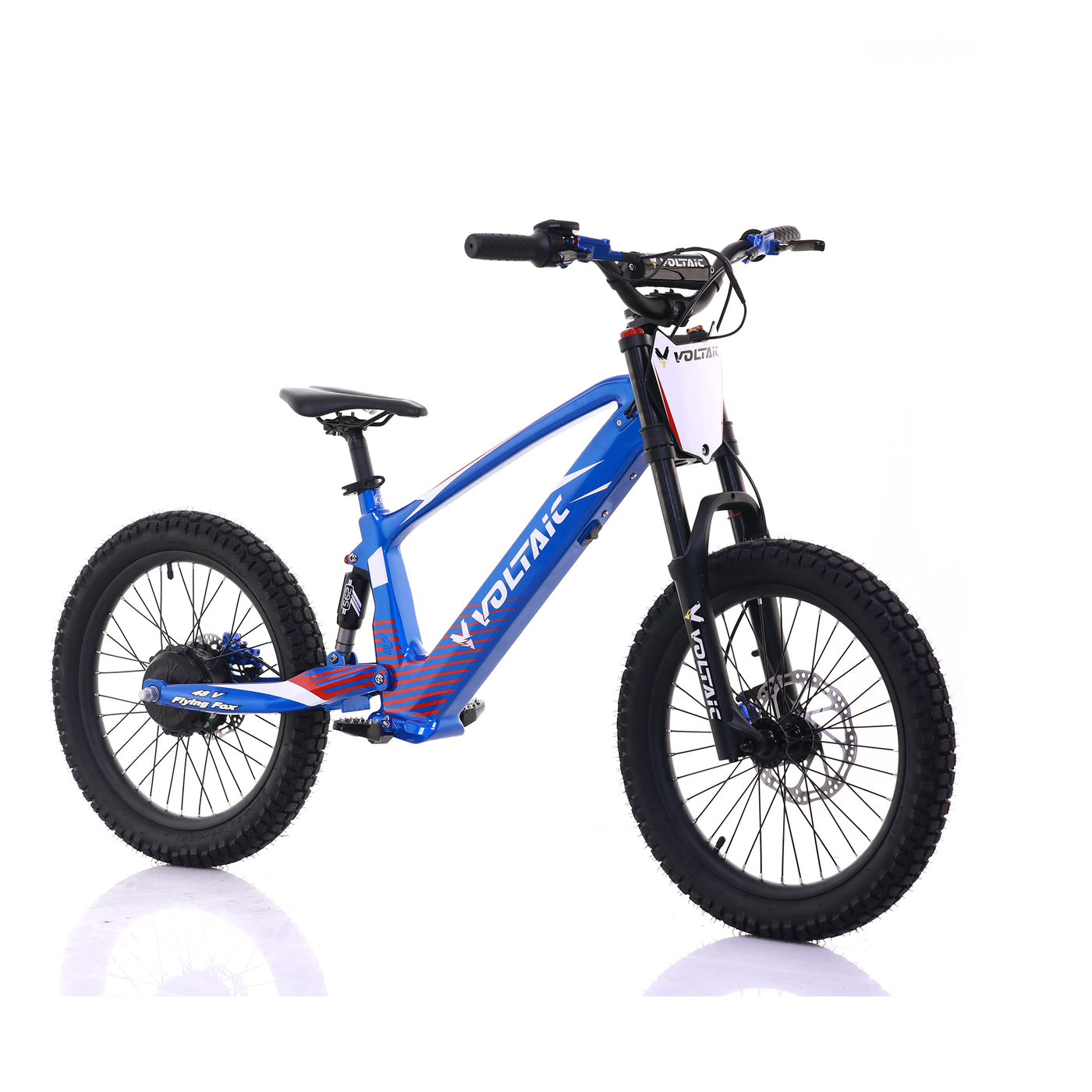

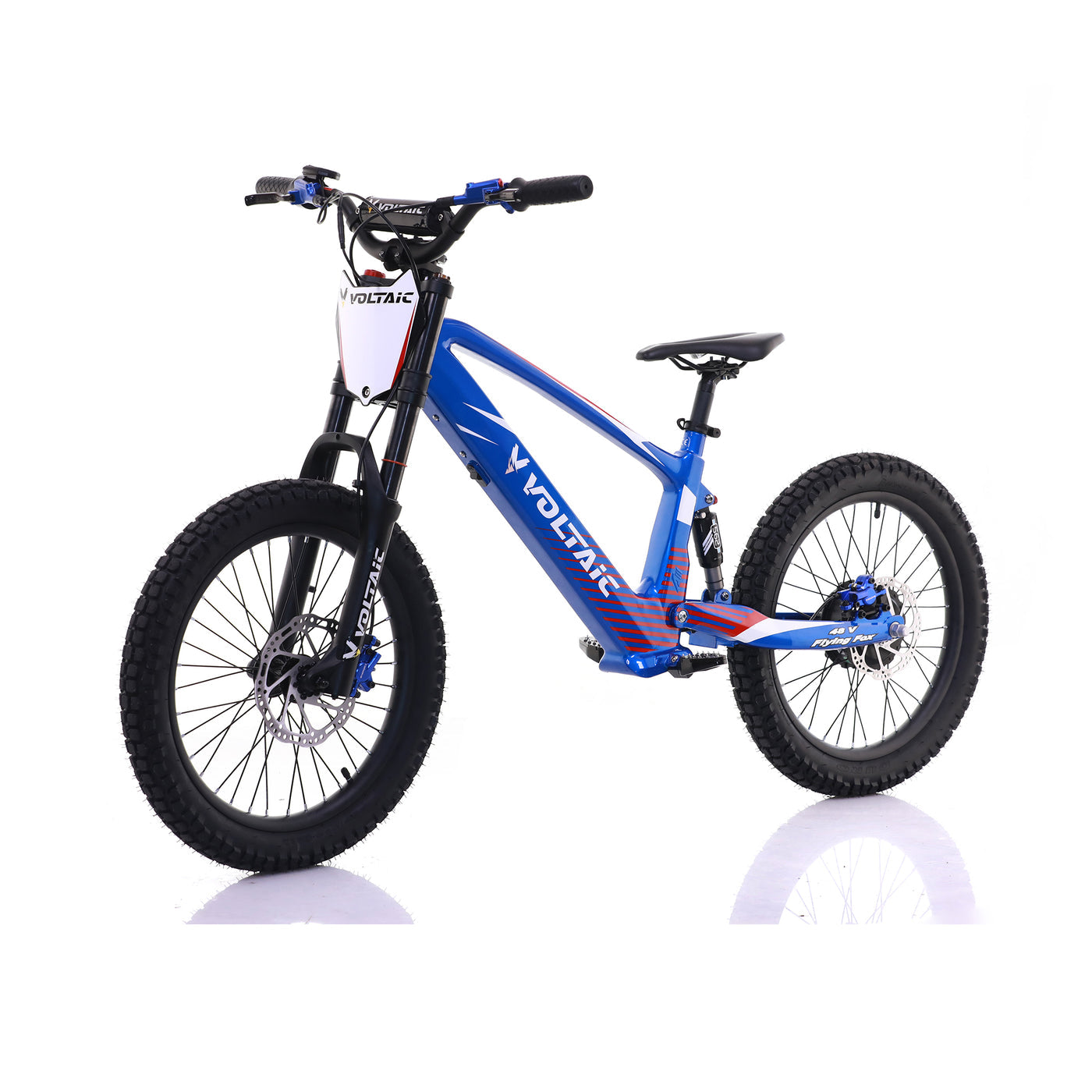

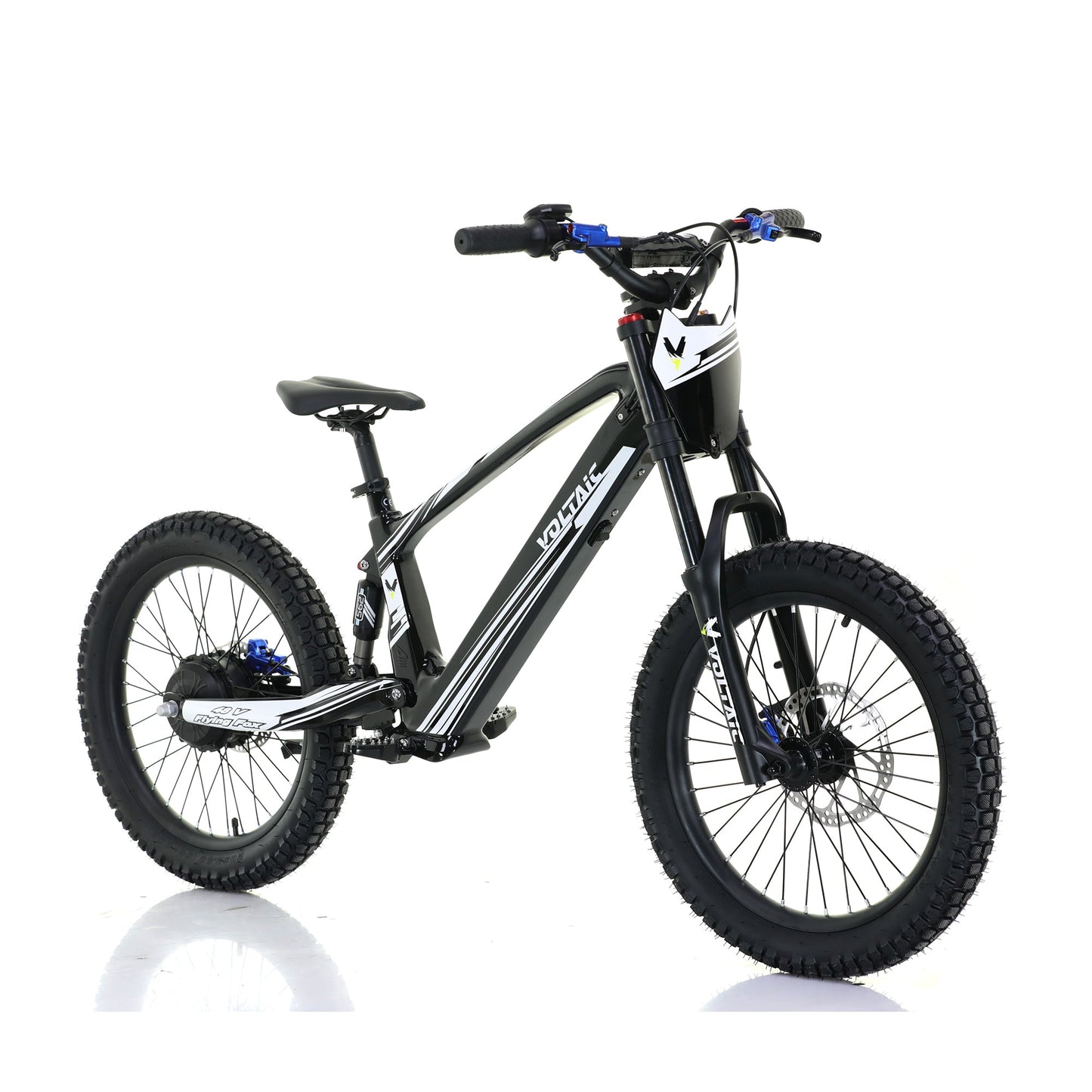

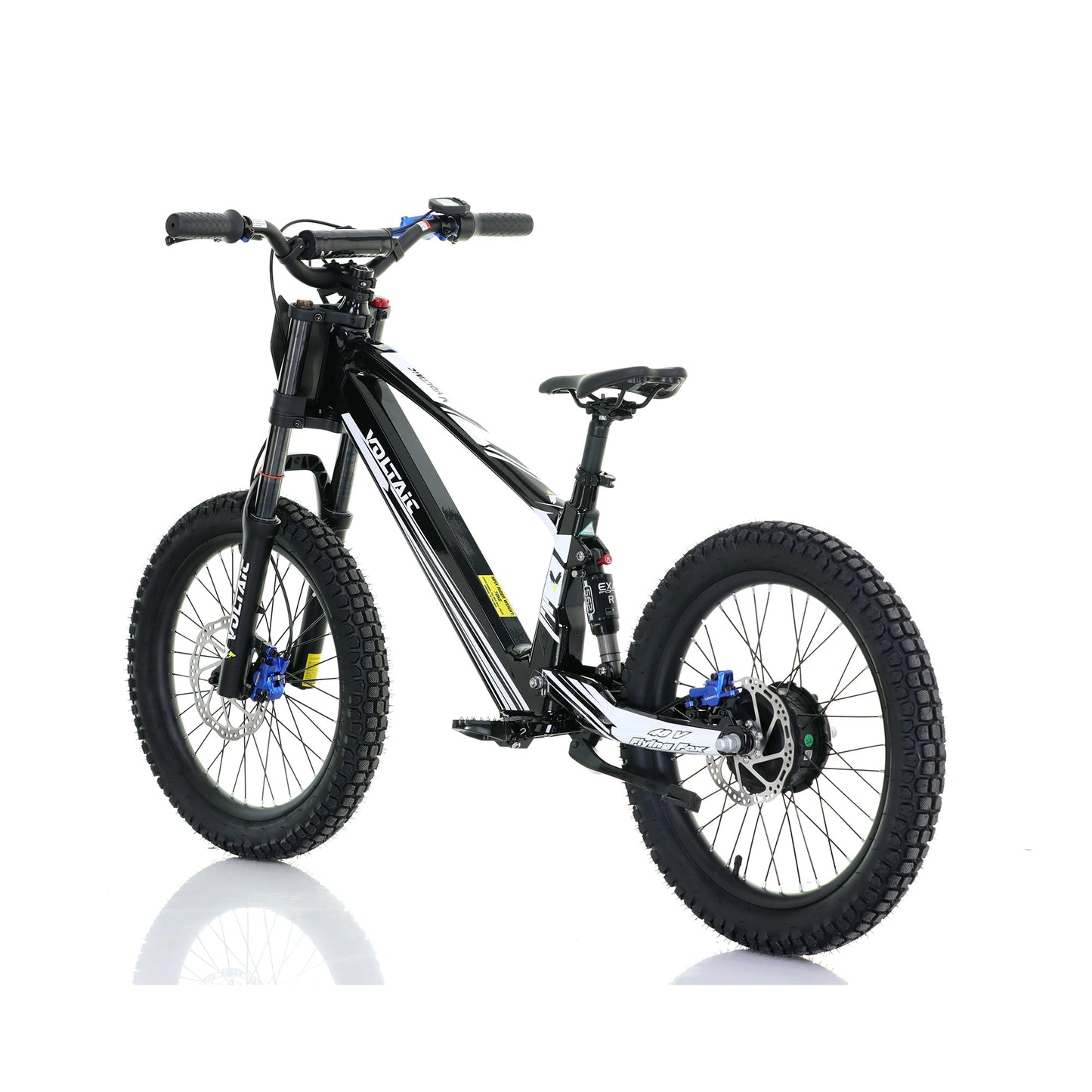

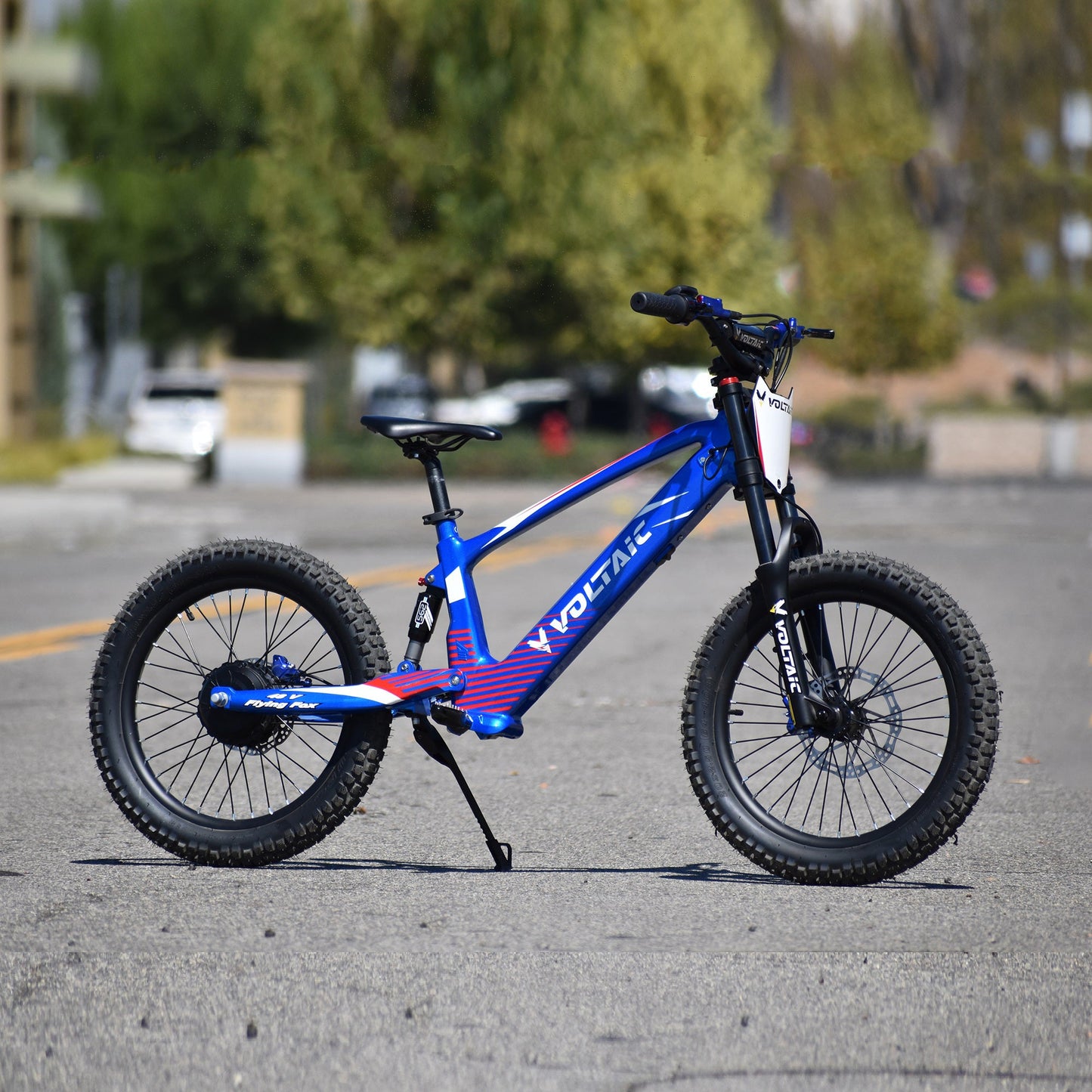

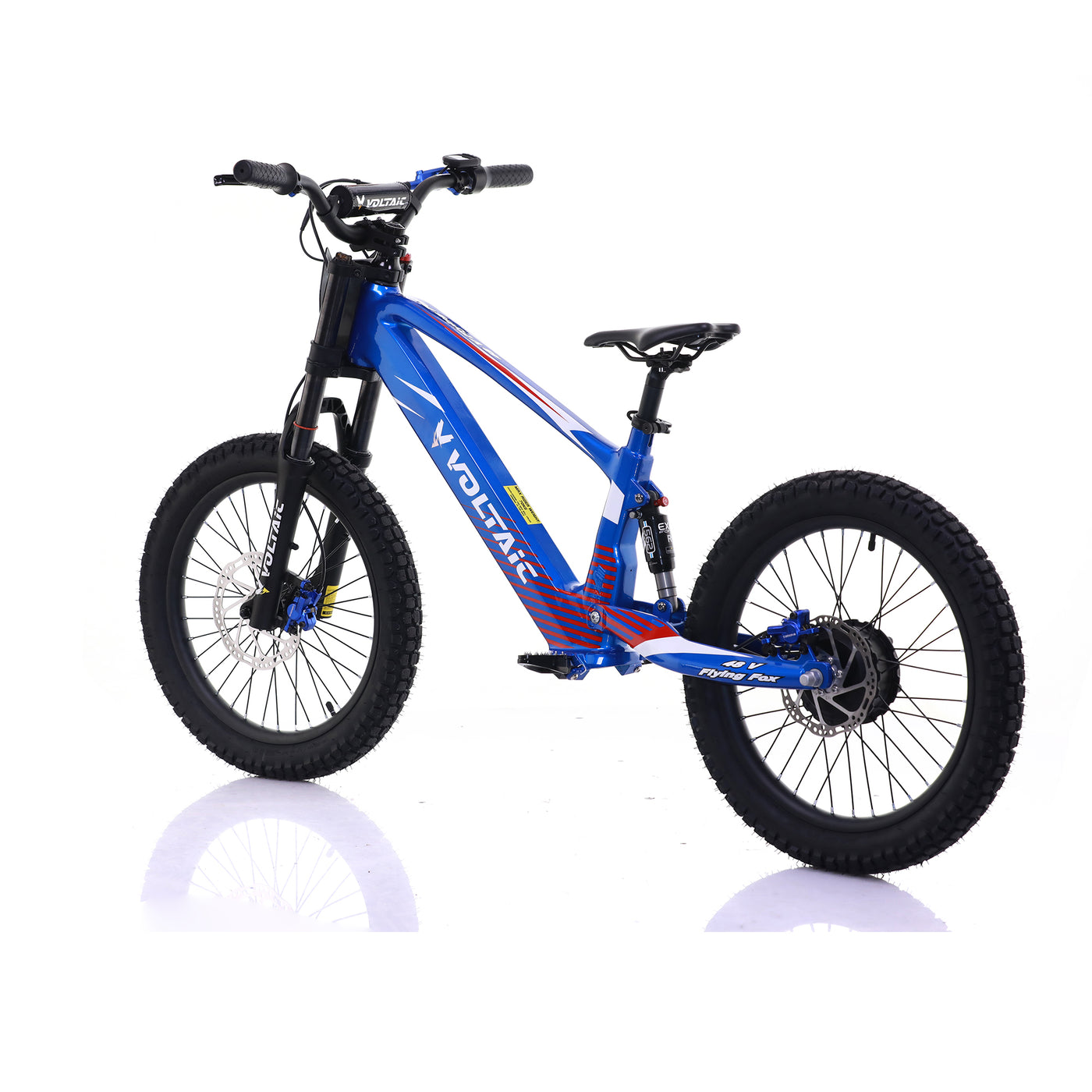

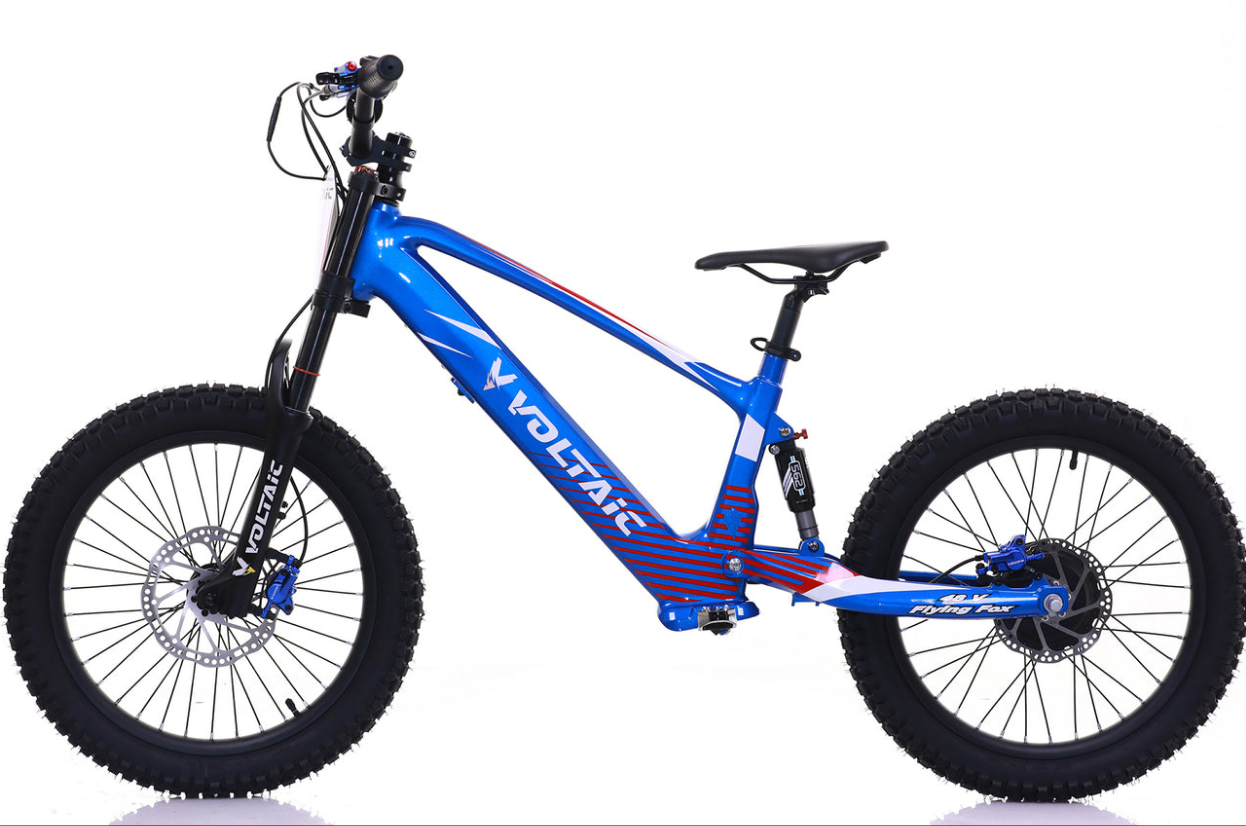

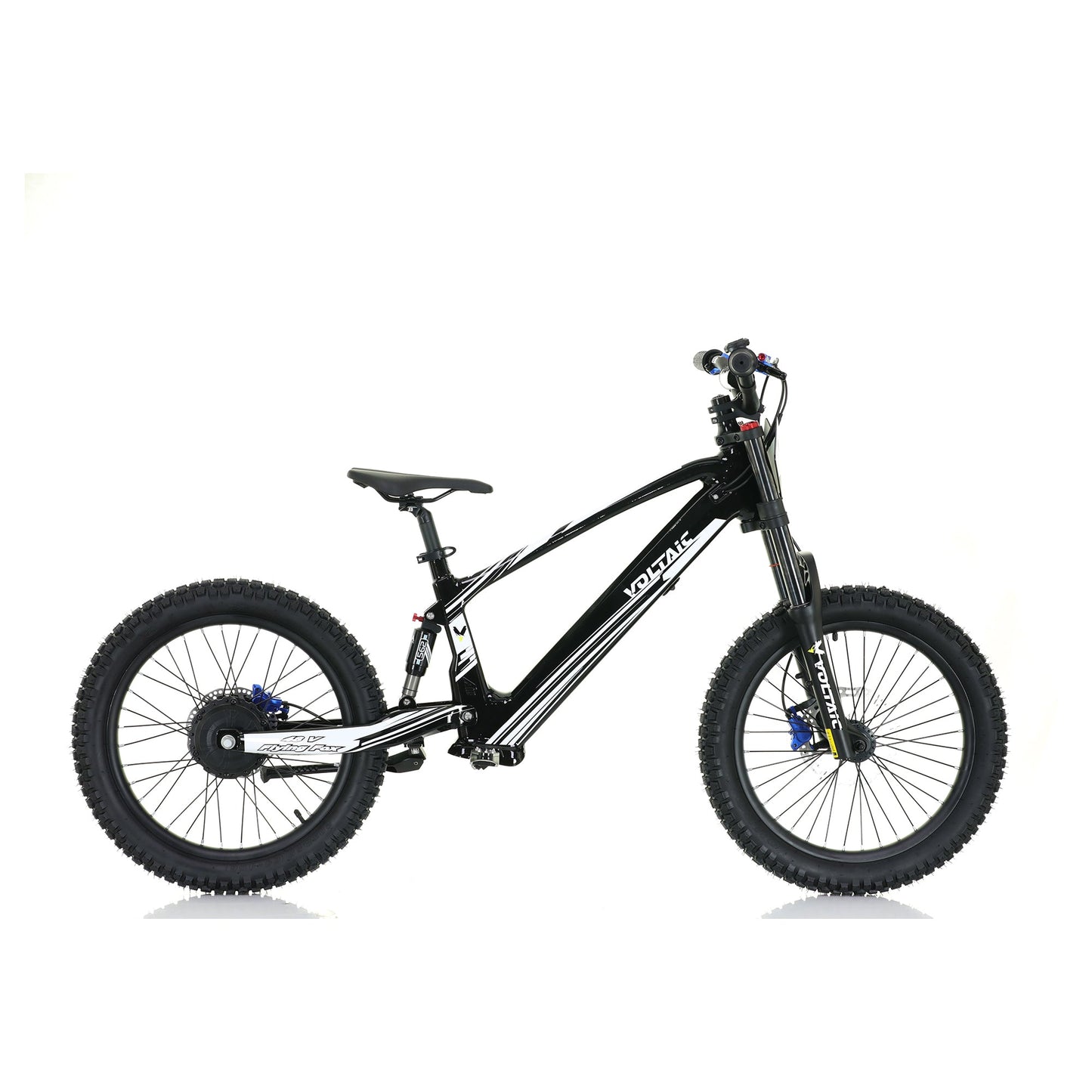

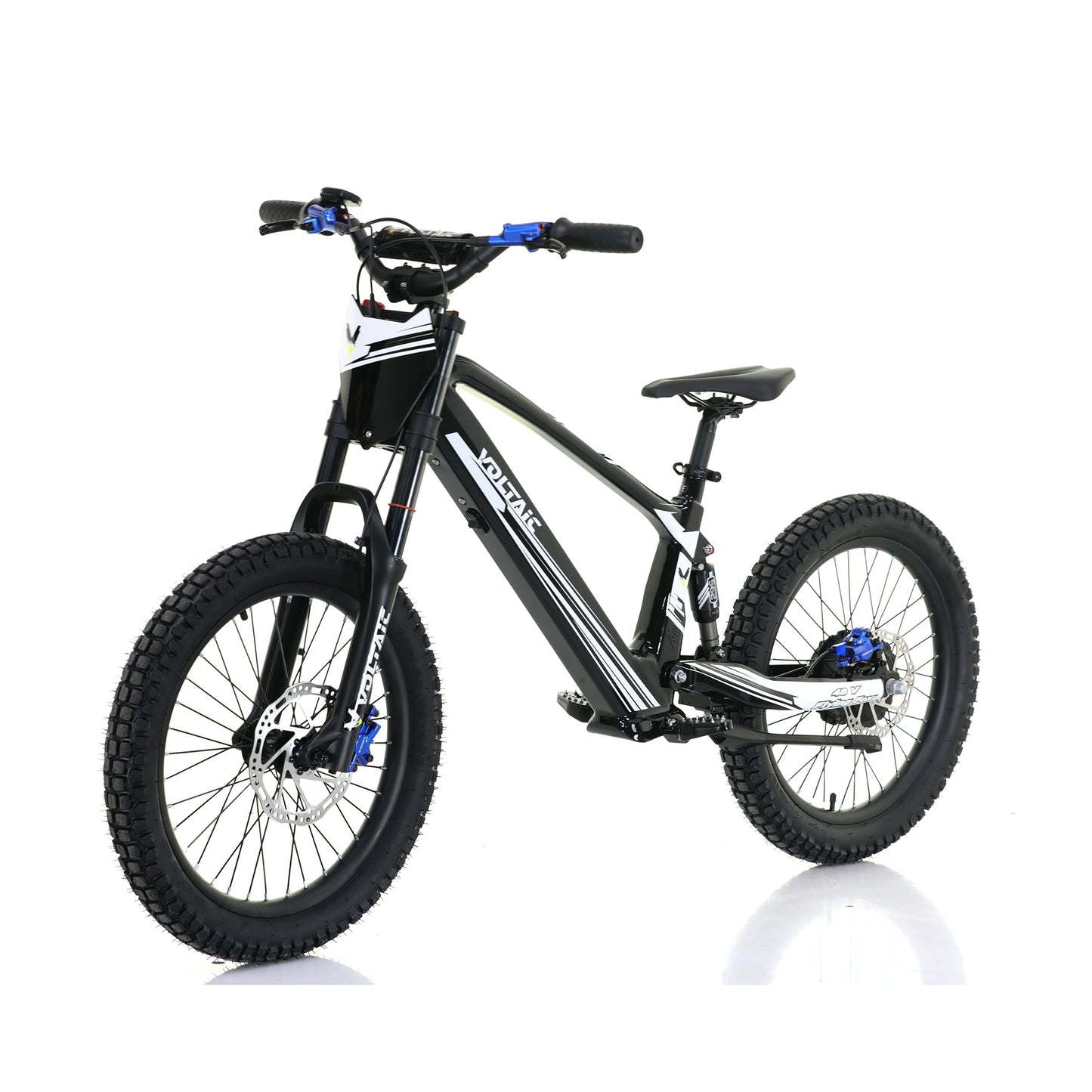

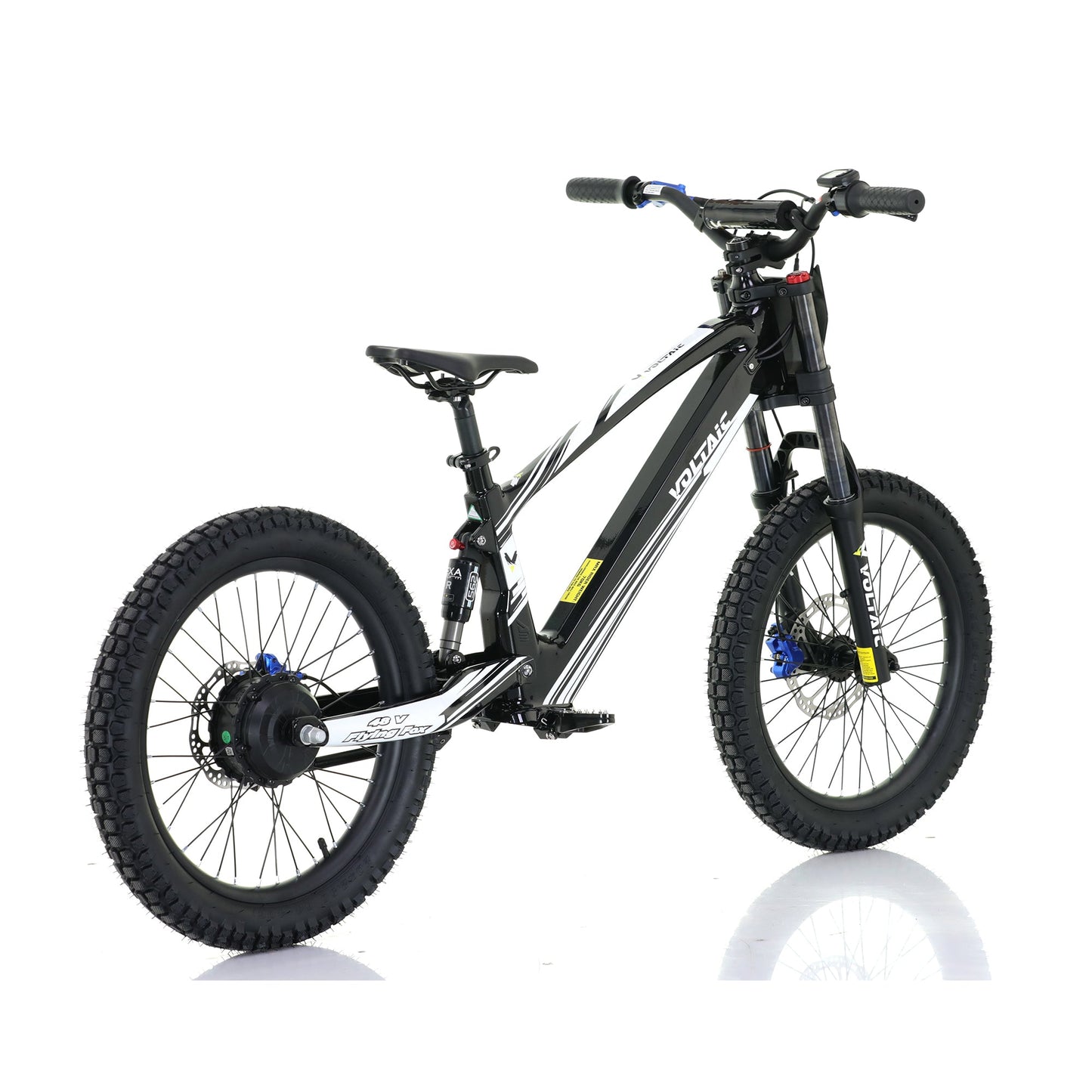

For experienced young riders, the Flying Fox 20-inch 48V Off-Road Electric Bike is the ultimate adventure ride! Built to tackle off-road trails and rough terrain, it offers powerful performance and top safety features.

Key Features:

- Boasting a 48V battery and a 750-watt motor, the Flying Fox delivers impressive power and torque for thrilling rides on any terrain.
- Choose from three power modes to match your riding style and skill level, whether you're cruising leisurely or tackling challenging trails.
- Reach speeds of up to 26 mph while maintaining safety standards, ensuring an exhilarating yet secure riding experience.
- Take on bumps and rough terrain with confidence thanks to the adjustable front forks with 80mm of travel.
- The adjustable hydraulic rear shock with lockout feature absorbs shocks and vibrations, enhancing stability and comfort on rugged trails.

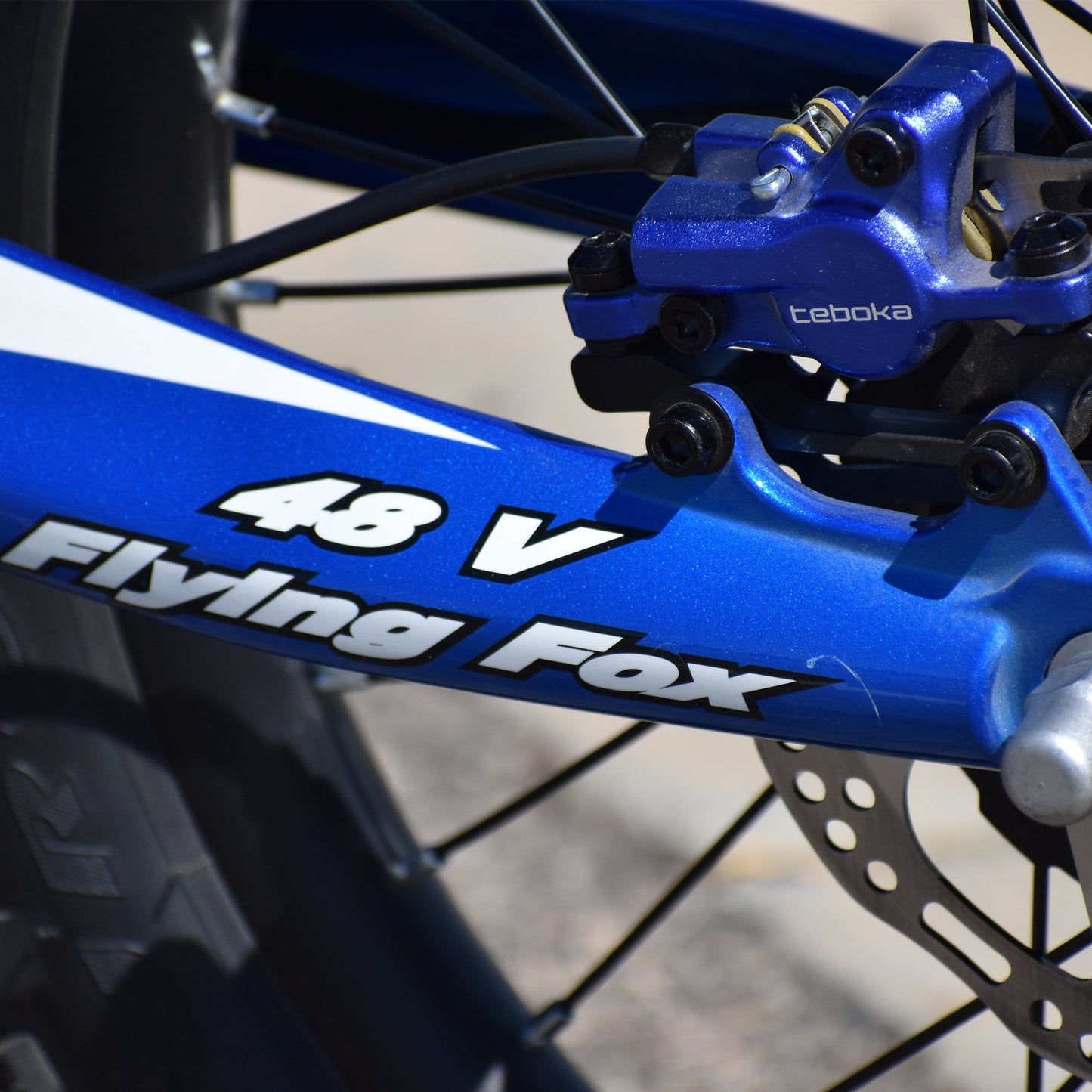

- Equipped with two-piston hydraulic brakes, the Flying Fox offers reliable and responsive braking performance for confident control on any terrain.
- With a recommended age range of 10 to 15 and a maximum rider weight of 155 lbs, the Flying Fox prioritizes safety without compromising on the thrill of adventure.

Experience the thrill of off-road exploration like never before with the Flying Fox Off-Road Electric Bike - where every ride is an opportunity for new discoveries!

FEATURING:

• Suspension fork with Hydraulic lockout, adjustable 80mm travel
• Removable battery pack. 48V 5A new technology high rate discharge cell lithium Ion battery allowing riders to hit the road for 26mph max speed
• 20” off road tire with alloy spoked rim
• PEAK POWER: 1000W
• BIKE WEIGHT: 51 LBS
• BATTERY: 48V 5AH
• MAX SPEED: High: 26mph , Mid: 22mph, Low: 15mph,
• RANGE : 35-60 minutes

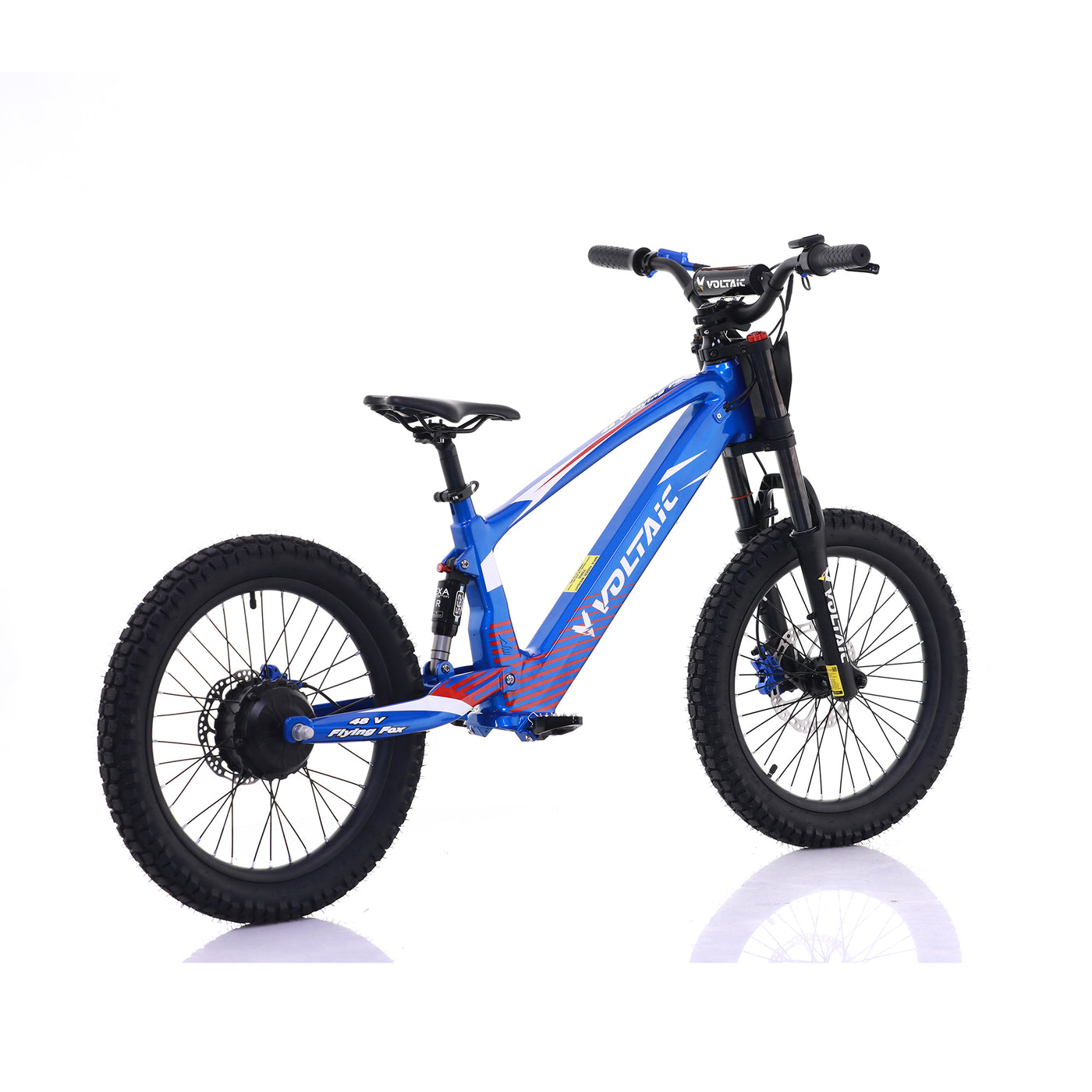

• Color: Blue

FULL SPECIFICATIONS

POWER

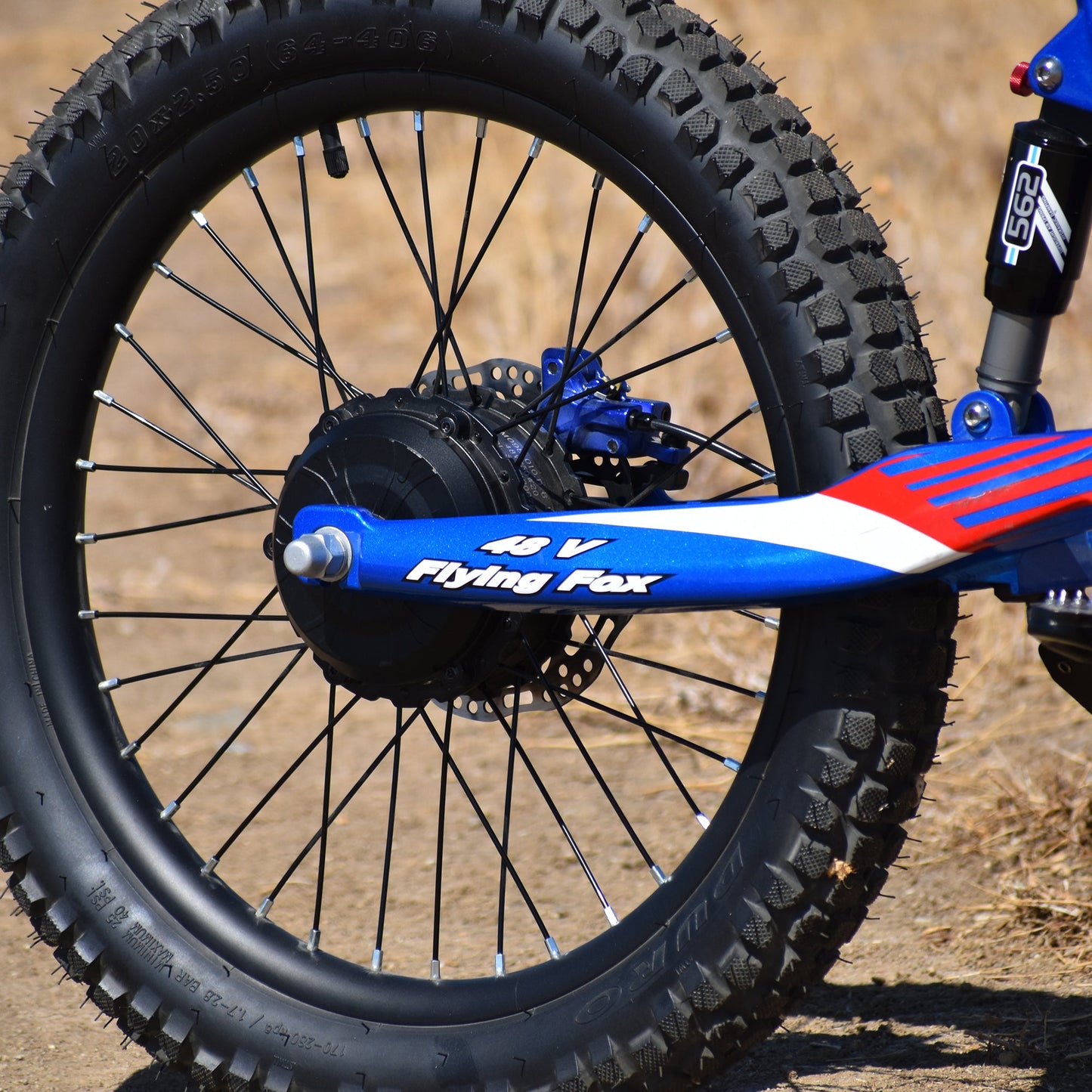

Power Motor Type : Air-cooled, brushless, in-wheel

Power Modes: 3 modes (High / Mid/ Low)

Max Speed by Mode: H 26mph / Mid 22mph / L 15mph

Drive System: Direct hub motor

Battery Type: Lithium-ion (Removable, High rate discharge cell)

Battery Voltage/Capacity: 48V 5 Ah (240Wh)

Battery Running Time 45-60 minutes

Battery Charge Time 1hours (approx)*

Maximum Battery Charge Cycles: 500 (after which 80% of original charge capacity)

PERFORMANCE

Frame Type: Aluminum

Front Suspension fork

Rear Shock

Front Tire: 20 x 4 offroad tire

Rear Tire: 20x 4 offroad tire

Front Brakes-Rear Brakes: F/R Hydraulic brake, two-piston

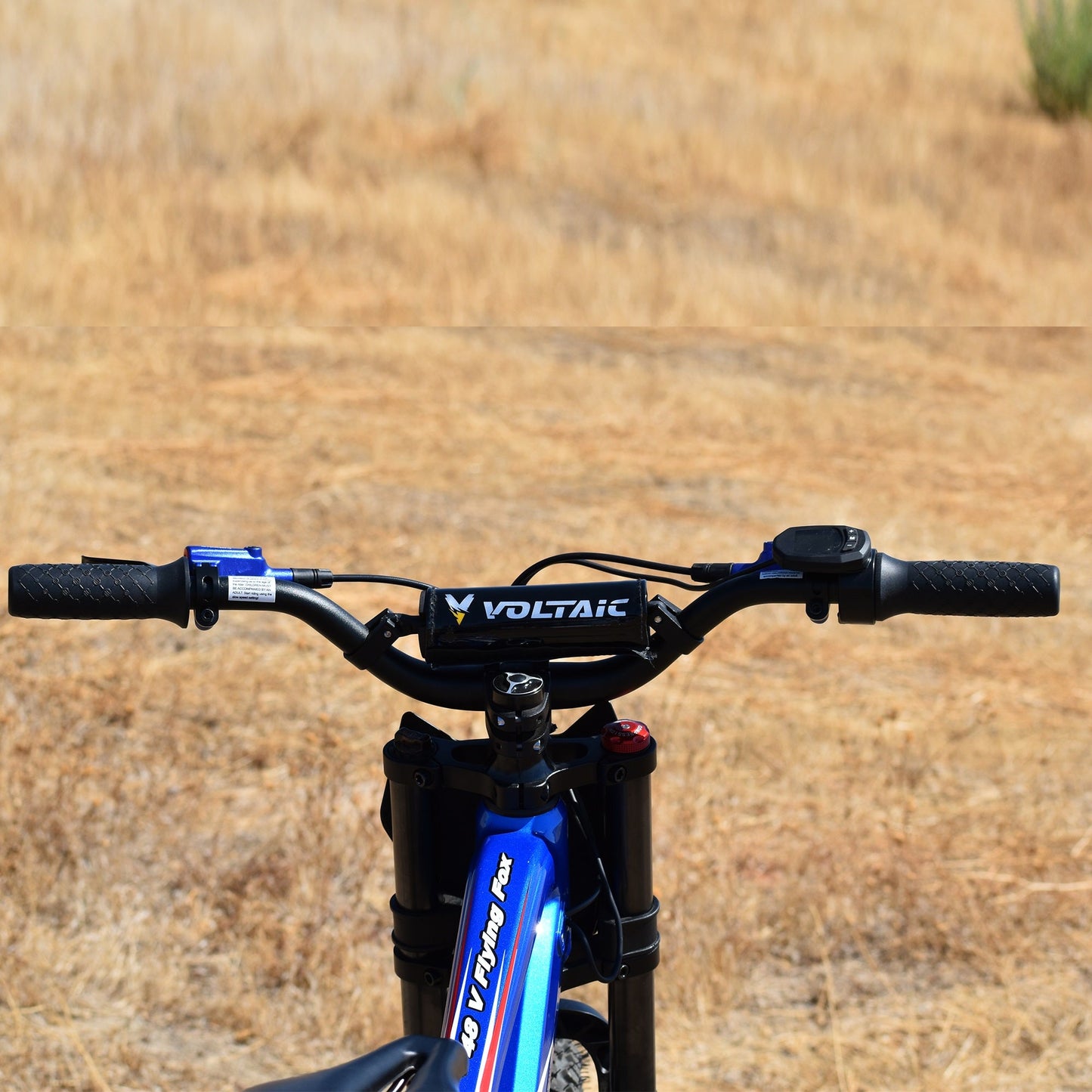

Handlebar Clamp Size: GU-06/φ19*φ22.2*620mm alloy

Steering Stem Size: 28.6 mm

Seat Post Size: 27.2 mm

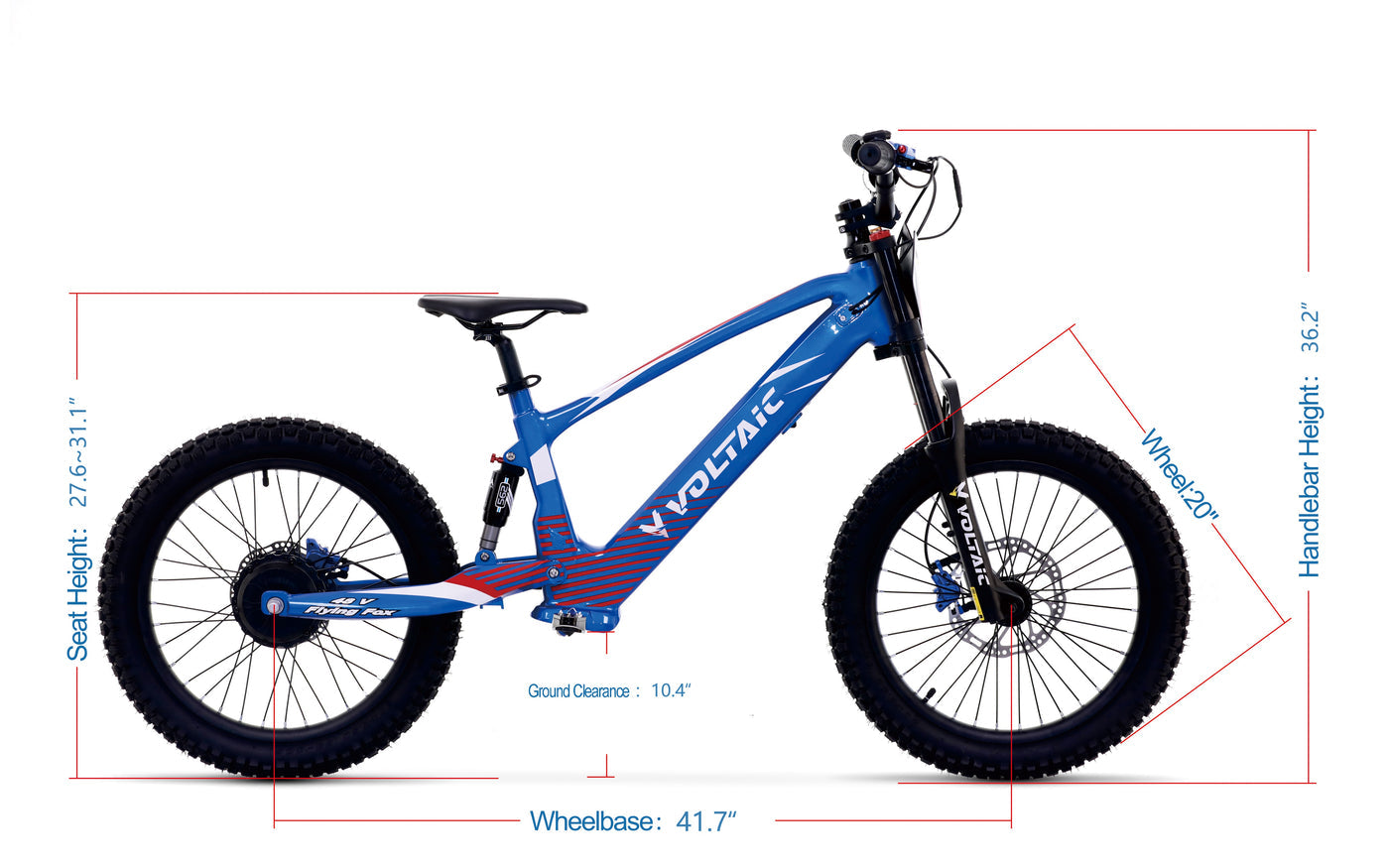

DETAILS

Rake 25 deg / 2.95 in

Overall Length: 63 in

Overall Width: 26 in

Overall Height: 37.4 in

Ground Clearance: 10 in

Seat Height: 27-31 in

Wheelbase: 41.3 in

Curb Mass: 51 lbs

Appropriate Rider's Age：10+ years old

Rider Weight (max) 155 lbs

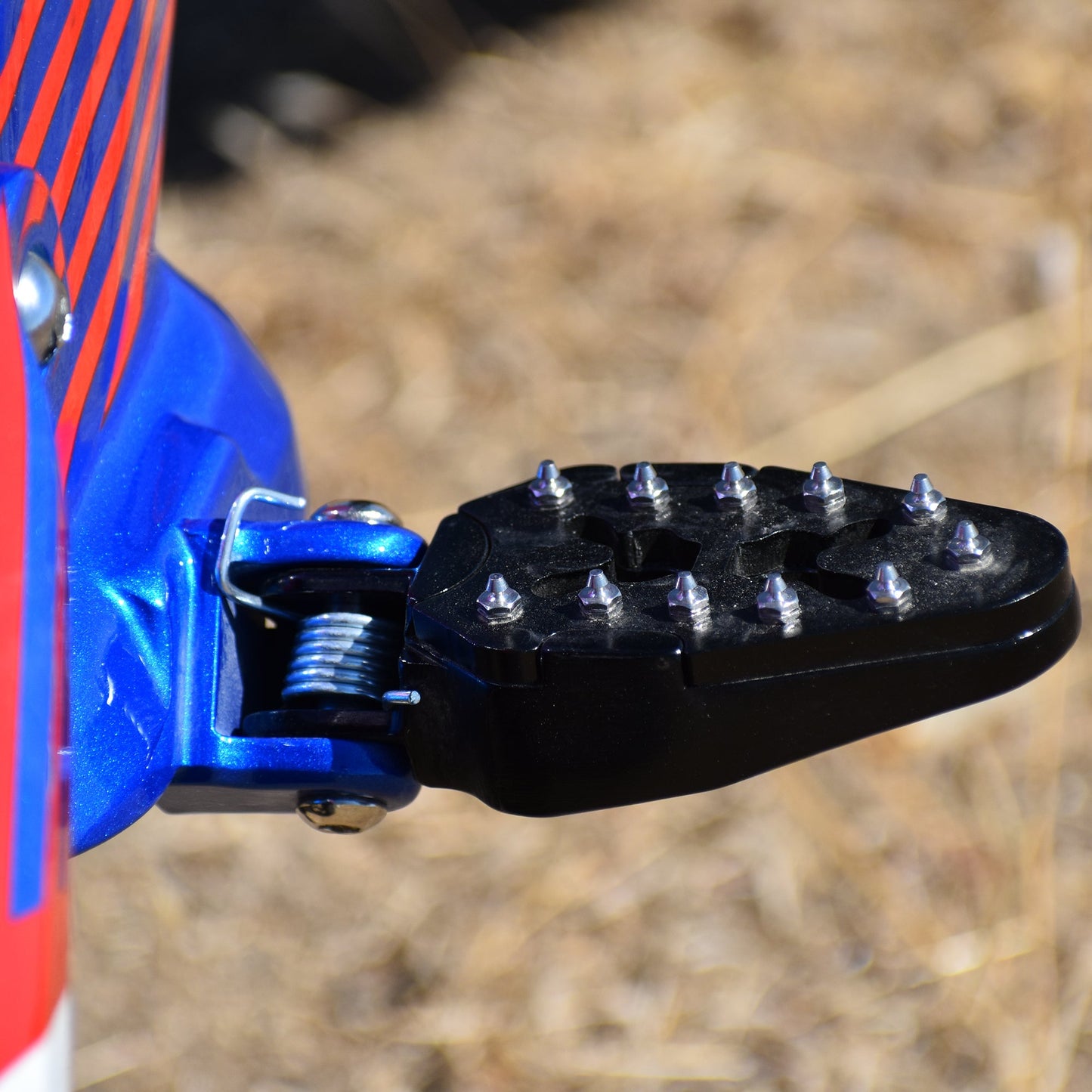

Foot rest： Yes

Charging power source： 110-V Single Phase AC (Home)Charging connector Under the frame

Warranty

VOLTAIC WARRANTY INFORMATION

• Voltaic GENERAL LIMITED WARRANTY (This warranty applies to all new Voltaic products excluding parts, and accessories)

 All new Voltaic products carry a 1 year limited warranty policy.

The Voltaic One-Year Limited Warranty is a voluntary manufacturer’s warranty.

Please note: All claims made under the Voltaic One-Year Limited Warranty will be governed by the terms set out in this warranty document.

Your Voltaic product (“Product”) is warranted against defects in materials and workmanship for a period of ONE (1) YEAR from the date of original retail purchase (“Warranty Period”) when used in accordance with Voltaic `s user manuals. Under this warranty, you will be able to direct your claims to Voltaic even in situations where you purchased the Voltaic Product from one of our authorized retailers. If a defect arises during the Warranty Period, Voltaic at its option will

 (1) repair or replace the Product at no charge using new parts or parts that are equivalent to new in performance and reliability,

 (2) provide replacement new parts or parts that are equivalent to new in performance and reliability, or

 (3) refund the original purchase price (for ridevoltaic.com orders only). This warranty excludes normal depletion of consumable parts such as batteries, throttles, kickstands, lights and other external components, unless failure has occurred due to a defect in materials or workmanship and, damage resulting from abuse, accident, modifications, unauthorized repairs or other causes that are not defects in materials and workmanship.
